Fabric Expansion Joints
Fabric expansion joints are flexible elements capable to compensate largely without any stresses axial, lateral and angular movements in various piping systems. Appropriate designs are available to withstand vibration and torsion as well. Also, fabric expansion joints can occur concurrently throughout the pipelines for a better compensation.
Designing and manufacturing fabric expansion joints is a complex process which requires detailed information about the application, the working environment and the dimensions of the equipments or pipings. ROTH fabric expansion joints can be manufactured from one single layer of fabric or they can have several layers glued of sewed together according to each application requirements.
Applications
Although fabric expansion have joints various applications, ROTH fabric expansion joints are mainly used with gaseous media and/or bulk media in industrial areas such as:
- Coal, oil and gas-fired steam power plants;
- Flue-gas desulphurization systems (DeSOx)
- Nitrogen oxide removal systems (DeNOx)
- Waste incineration plants
- Chemical plants;
- Refineries;
- Cement and lime industry;
- Metallurgical plants;
- Painting and drying systems;
- Ventilation systems ;
- De-dusting and filter installations;
- Fire protection systems etc.
Backed by more than 30 years of practical experience and comprehensive test procedures, we are able to offer our clients the very best in consultation. The high quality of our fabric expansion joints is ensured by the choice of high-grade materials and their appropriate processing. Correct installation is another factor that determines the operational effectiveness of any fabric expansion joint. We will be pleased to advise you or to provide expert assembly engineers on request.
Contructive Types
Cuff & Clamp Couplings
- Type 11 Fabric Expansion JointTubular fabric expansion joint, for mounting with clamps directly in the pipeline. Standard model, subject to customization. Available in round or rectangular shape.
- Type 12 Fabric Expansion JointTubular fabric expansion joint with preformed convolution for greater expansion compensation, for mounting with clamps directly in the pipeline. Standard model, subject to customization. Available in round or rectangular shape.
- Type 14 Fabric Expansion JointMulti-convolution fabric expansion joint for mounting with clamps, with stainless steel inner support rings. Standard model, subject to customization. Available in round or rectangular shape.
- Type 15 Fabric Expansion JointConical tube fabric expansion joint for mounting with clamps, for bridging differed pipe or conduit diameters and shapes. Standard model, subject to customization. Available in round or rectangular shape.
- Type 16 Fabric Expansion JointTubular fabric expansion joint with external convolution for large movements, mounting with clamps, for connecting different cross-sections. Standard model, subject to customization. Available in round or rectangular shape.
Angled Flange Couplings
- Type 21 Fabric Expansion JointFlat tube fabric expansion joint, mounted on angled flange for high temperature applications with optional inner sleeve for protection. Standard model, subject to customization. Available in round or rectangular shape.
- Type 22 Fabric Expansion JointFlat tube fabric expansion joint, mounted on angled flange, with preformed convolution for greater compensation and optional insulation. Standard model, subject to customization. Available in round or rectangular shape.
- Type 23 Fabric Expansion JointMulti-convolution fabric expansion joint for extreme movement compensation, mounted on angled flange, with integrated reinforcement rings. Standard model, subject to customization. Available in round or rectangular shape.
Regular Flange Couplings
- Type 31 (with baffle plate) Fabric Expansion JointFlanged fabric expansion joint with U-design geometry and flanged inner sleeve for protection. Standard model, subject to customization. Available in round or rectangular shape.
- Type 31 (without inner sleeve) Fabric Expansion JointFlanged fabric expansion joint with U-design geometry without inner sleeve. Standard model, subject to customization. Available in round or rectangular shape.
- Type 32 Fabric Expansion JointFlanged fabric expansion joint with convex bellows for greater expansion compensation and internal pressure. Standard model, subject to customization. Available in round or rectangular shape.
- Type 33 Fabric Expansion JointMulti-convolution fabric expansion joint for extreme movement compensation, flanged model also with integral stainless steel supporting for internal and external pressure. Standard model, subject to customization. Available in round or rectangular shape.

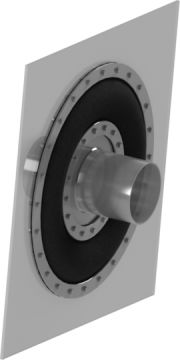

- Type 35 Fabric Expansion JointSpecial design fabric membrane expansion joint for shafts and tubular bushings. Standard model, subject to customization. Available in round or rectangular shape.
- Type 42 Fabric Expansion JointFlanged fabric expansion joint with concave bellows for greater expansion compensation and external pressure resistance. Standard model, subject to customization. Available in round or rectangular shape.
- Type 43 Fabric Expansion JointSchlauch-Kompensator für Spannbandbefestigung direkt auf der Rohrleitung, Standardausführung. Standardmodell, lieferbar in runder oder eckiger Ausführung.
- Type 45 Fabric Expansion JointFlanged fabric expansion joint with reversed U-design geometry and external convolution, special design with internal bolts. Standard model, subject to customization. Available in round or rectangular shape.
Mixed Couplings
- Type 51 Fabric Expansion JointMixed cuff-flange fabric expansion joint for size identical connecting cross-sections. Standard model, subject to customization. Available in round or rectangular shape.
- Type 52 Fabric Expansion JointMixed conical cuff-flange fabric expansion joint for different size connecting cross-sections. Standard model, subject to customization. Available in round or rectangular shape.
- Type 53 Fabric Expansion JointMixed cuff-flange fabric expansion joint with external preformed convolution for extreme expansion compensation for identical or different size connecting cross-sections. Standard model, subject to customization. Available in round or rectangular shape.
- Type 54 Fabric Expansion JointMixed tube-flange fabric expansion joint with convolutions for identical or different size connecting cross-sections, with stainless steel support rings. Standard model, subject to customization. Available in round or rectangular shape.
