Type 35
Fabric Expansion Joint

Standard model membrane fabric expansion joint composed of single- or multi-layer fabric, available in cylindrical or rectangular shape for mounting on shafts and tubular bushings.

Custom design for membrane expansion joint is required based on the particular dimensions of the application.

For detailed technical specifications on Type 35 fabric expansion joints please check the following table and documents or contact us.

Eigenschaften

  • compensate movements and vibrations
  • simple installment with flanges
  • membrane expansion joint
  • custom design

Dokumente

Product Data Sheet
Category Brochure
Installation & Servicing

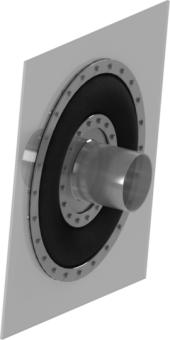

Type 35 - Fabric Expansion Joint | 3D view
Type 35 - Fabric Expansion Joint | 3D view
Type 35 - Fabric Expansion Joint | dimensional sketch
Type 35 - Fabric Expansion Joint | dimensional sketch

Technische Spezifikationen

TypeSeriesSizePressureMovements

 RangeClassAxial [+/mm]Lateral [+/mm]Angular [+/deg]
FabricW 35by request *up to 500 mbars **acc. to designsheetacc. to designsheetacc. to designsheet
TypeFabric
SeriesW 35
Couplingsflanges
Size / Rangeby request *
Pressureup to 500 mbars **
Axialacc. to designsheet
Lateralacc. to designsheet
Angularacc. to designsheet

* limited by manufacturing technology
** special constructions for higher pressure may be possible
