Type PTFE-Liner
Stainless Steel Corrugated Hose

Standard model stainless steel corrugated hose single braided (1-layer) with PTFE-Linner (TEFLON) for pressured applications.

Available with various standard and non-standard couplings at any length required but no more than 5m per segment. Selected couplings are available in carbon steel and stainless steel.

For detailed technical specifications on stainless steel corrugated hoses with PTFE-Linner please check the following table and documents or contact us.

Properties

stainless steel flexible hose
smooth inside (PTFE-Linner)
flanged or threaded couplings
lengths of max. 5m

Documents

Product Data Sheet
Category Brochure
Installation & Servicing
Typical Layouts Calculation

Technical Specifications

	SE111-base	SE112-base
DN * [mm] \| [inch]	PN [bar]	Dynamic Bend Radius [mm]	Approx. Weight [g/m]	PN [bar]	Dynamic Bend Radius [mm]	Approx. Weight [g/m]	Max. Total Length [mm]
20	3/4"	40	200	540	65	220	910	5000
25	1"	40	220	800	65	245	1410	5000
32	1 1/4"	25	270	1000	50	300	1700	5000
40	1 1/2"	25	300	1250	50	330	2180	5000
50	2"	25	350	1650	40	385	2640	5000
65	2 1/2"	20	410	2380	25	450	4090	5000
80	3"	16	450	2600	25	500	4210	5000
100	4"	16	560	3450	25	620	5500	5000
125	5"	10	660	5800	20	730	9480	5000
150	6"	10	815	8200	16	900	11120	5000

SE111-base

SE112-base

DN *
[mm] | [inch]

PN
[bar]

Dynamic
Bend Radius
[mm]

Approx.
Weight
[g/m]

PN
[bar]

Dynamic
Bend Radius
[mm]

Approx.
Weight
[g/m]

Max.
Total
Length
[mm]

3/4"

200

540

220

910

5000

220

800

245

1410

5000

1 1/4"

270

1000

300

1700

5000

1 1/2"

300

1250

330

2180

5000

350

1650

385

2640

5000

2 1/2"

410

2380

450

4090

5000

450

2600

500

4210

5000

100

560

3450

620

5500

5000

125

660

5800

730

9480

5000

150

815

8200

900

11120

5000

* other sizes available on individual request

Couplings Types

Flanged Couplings

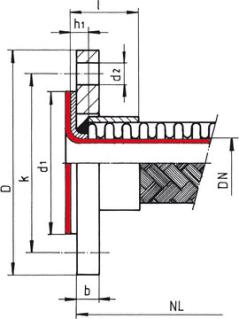

Coupling AE201

Collar and swivel flange assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Flanges according to DIN , ANSI , other known standards or custom design.

DN [mm]	l [mm]	h1 [mm]
10	29	9
15	29	9
20	32	12
25	40	20
32	40	20
40	40	20
50	40	20
65	40	20
80	50	25
100	50	25
125	60	30
150	70	30

* Acc. to DIN EN 1092 type 02 + 33 in PN10
** for other DN and D, k, d1, d2, b measurements please check Standard's Page or Catalog Apppendix.

Coupling AE202

Weld-on shoulder and floating flange coupling assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Flanges according to DIN , ANSI , other known standards or custom design.

DN [mm]	l [mm]	h1 [mm]	h3 [mm]
10	55	35	12
15	55	38	12
20	60	40	14
25	60	40	14
32	60	42	14
40	60	45	14
50	65	45	16
65	65	45	16
80	75	50	16
100	75	52	18
125	80	55	18
150	90	55	20

* Acc. to DIN EN 1092 type 04 + 34 in PN10-PN16
** for other DN and D, k, d1, d2, b measurements please check Standard's Page or Catalog Apppendix.

Coupling AE203

Collar sockets and swivel flange assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Flanges according to DIN , ANSI , other known standards or custom design.

DN [mm]	l [mm]	h1 [mm]	h3 [mm]
10	75	55	12
15	75	55	12
20	80	60	14
25	85	65	14
32	90	70	14
40	95	75	14
50	95	80	16
65	100	85	16
80	110	90	16
100	115	90	16
125	120	95	18
150	135	55	20

* Acc. to DIN EN 1092 type 02 + 32 in PN10-PN16
** for other DN and D, k, d1, d2, b measurements please check Standard's Page or Catalog Apppendix.

Coupling AE204

Weld-on (fixed) flange coupling assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Flanges according to DIN , ANSI , other known standards or custom design.

DN [mm]	l [mm]	h1 [mm]
10	55	35
15	55	38
20	58	40
25	58	40
32	60	42
40	62	45
50	65	45
65	65	45
80	75	50
100	77	52
125	85	55
150	95	55

* Acc. to DIN EN 1092 type 11 in PN10-PN16
** for other DN and D, k, d1, d2, b measurements please check Standard's Page or Catalog Apppendix.

Pipe / Welding-ends Couplings

Coupling AE301

Welding-end coupling assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN [mm]	d [mm]	s [mm]	l [mm]	l1 [mm]
6	8	1	70	50
10	13.5	1.8 *	70	50
12	17.2	1.8 *	70	50
15	21.3	2	70	50
20	26.9	2.6	75	55
25	33.7	2.6	80	60
32	42.4	2.6	85	65
40	48.3	2.6	90	70
50	60.3	2.9	90	70
65	76.1	2.9	95	75
80	88.9	3.2	105	80
100	114.3	3.6	110	85
125	139.7	4	115	85
150	168.3	4.5 **	130	90
200	219.1	6.3 **	140	100
250	273.0	6.3 **	140	100
300	323.9	7.1 **	140	100

* 1.6mm for stainless steel
** 4.0mm for stainless steel
*** other pipe diameters, thickness or length on request

Coupling AE302

Tubular fitting for pipe coupling with cutting and locking ring assembly for SE110 hose.

Available in carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN [mm]	d [mm]	s [mm]	l [mm]	l1 [mm]
6	8	1	48	28
8	10	1	50	30
10	12	1.5	50	30
12	15	1.5	52	32
15	18	1.5	52	32
20	22	1.5	56	36
25	28	1.5	60	40
32	35	2	65	45
40	42	2	65	45

* other pipe diameters, thickness or length on request

Cone Seal Threaded Couplings

Coupling AE401

Internal thread with 24 degree cone seal assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN [mm]	d DIN2999	l [mm]	l1 [mm]	SW1 [mm]	SW1 [mm]
6	1/4"	65	45	19	19
10	3/8"	68	48	22	22
12	1/2"	75	32	27	32
15	1/2"	75	55	32	27
20	3/4"	82	62	36	32
25	1"	87	67	41	41
32	1 1/2"	93	73	50	46
40	1 1/2"	97	77	60	55
50	2"	105	85	70	65

* other thread connection, i.e. metric, NPT, cylindrical available on request

Coupling AE403

External thread with 24 degree cone seal assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN [mm]	d DIN2999	l [mm]	l1 [mm]	SW1 [mm]	SW1 [mm]
6	1/4"	70	50	19	17
10	3/8"	73	53	22	19
12	1/2"	82	62	32	27
15	1/2"	82	62	32	27
20	3/4"	90	70	36	32
25	1"	95	75	41	41
32	1 1/2"	101	81	50	46
40	1 1/2"	107	87	60	55
50	2"	113	93	70	65

* other thread connection, i.e. metric, NPT, cylindrical available on request

Coupling AE404

Welding-end with 24 degree cone seal assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN [mm]	d x s [mm]	l [mm]	l1 [mm]	SW1 [mm]	SW1 [mm]
6	8x1	70	50	19	17
10	13.5x1.8*	73	53	22	19
12	17.2x1.8*	82	62	32	27
15	21.3x2	82	62	32	27
20	26.9x2.6	90	70	36	32
25	33.7x2.6	95	75	41	41
32	42.4x2.6	101	81	50	46
40	48.3x2.6	107	87	60	55
50	60.3x2.9	113	93	70	65

* 1.6mm for stainless steel
** other lengths available on request

Hex Nipple / Socket

Coupling AE405

Hexagon nipple and tapered external thread assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN [mm]	d DIN2999	l [mm]	l1 [mm]	SW [mm]
6	1/4"	45	25	17
10	3/8"	48	28	19
12	1/2"	51	31	22
15	1/2"	51	31	22
20	3/4"	52	32	27
25	1"	60	40	36
32	1 1/2"	63	43	46
40	1 1/2"	66	46	50
50	2"	70	50	60
65	2 1/2"	80	60	80
80	3"	100	75	95

* for complete thread specifications please check our Standard's Page of Catalog Apppendix

Coupling AE406

Hexagon nipple and cylindrical external thread assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN [mm]	d DIN2999	l [mm]	l1 [mm]	SW [mm]
6	1/4"	45	25	17
10	3/8"	48	28	19
12	1/2"	51	31	22
15	1/2"	51	31	22
20	3/4"	52	32	27
25	1"	60	40	36
32	1 1/2"	63	43	46
40	1 1/2"	66	46	50
50	2"	70	50	60
65	2 1/2"	80	60	80
80	3"	100	75	95

* for complete thread specifications please check our Standard's Page of Catalog Apppendix

Coupling AE408

Socket with internal thread assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN [mm]	d DIN2999	l [mm]	l1 [mm]
6	1/4"	45	25
10	3/8"	46	26
12	1/2"	54	34
15	1/2"	54	34
20	3/4"	56	36
25	1"	63	43
32	1 1/2"	68	48
40	1 1/2"	68	48
50	2"	76	56
65	2 1/2"	85	65
80	3"	96	71

* for complete thread specifications please check our Standard's Page of Catalog Apppendix

Holander Assembly

Coupling AE501

Internal thread with cone seal assembly for stainless steel corrugated hose type SE110.

Available in malleable cast iron, carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN [mm]	d DIN2999	l [mm]	l1 [mm]	SW1 [mm]	SW2 [mm]
6	1/4"	65	45	28	18
10	3/8"	67	47	32	22
12	1/2"	74	54	39	26
15	1/2"	74	54	39	26
20	3/4"	79	59	48	31
25	1"	84	64	54	38
32	1 1/2"	87	67	67	48
40	1 1/2"	91	71	73	54
50	2"	102	82	90	66

* other thread connection, i.e. metric, NPT, cylindrical available on request
** for complete thread specifications please check our Standard's Page of Catalog Apppendix

Coupling AE502

Internal thread with flat seal assembly for stainless steel corrugated hose type SE110.

Available in malleable cast iron, carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN [mm]	d DIN2999	l [mm]	l1 [mm]	SW1 [mm]	SW2 [mm]
6	1/4"	65	45	28	18
10	3/8"	67	47	32	22
12	1/2"	74	54	39	26
15	1/2"	74	54	39	26
20	3/4"	79	59	48	31
25	1"	84	64	54	38
32	1 1/2"	87	67	67	48
40	1 1/2"	91	71	73	54
50	2"	102	82	90	66

* other thread connection, i.e. metric, NPT, cylindrical available on request
** for complete thread specifications please check our Standard's Page of Catalog Apppendix

Coupling AE503

External thread with cone seal assembly for stainless steel corrugated hose type SE110.

Available in malleable cast iron, carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN [mm]	d DIN2999	l [mm]	l1 [mm]	SW1 [mm]	SW2 [mm]
6	1/4"	78	58	28	18
10	3/8"	83	63	32	22
12	1/2"	93	73	39	26
15	1/2"	93	73	39	26
20	3/4"	101	81	48	31
25	1"	107	87	54	38
32	1 1/2"	111	91	67	48
40	1 1/2"	117	97	73	54
50	2"	131	111	90	66

* other thread connection, i.e. metric, NPT, cylindrical available on request
** for complete thread specifications please check our Standard's Page of Catalog Apppendix

Coupling AE504

External thread with flat seal assembly for stainless steel corrugated hose type SE110.

Available in malleable cast iron, carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN [mm]	d DIN2999	l [mm]	l1 [mm]	SW1 [mm]	SW2 [mm]
6	1/4"	78	58	28	18
10	3/8"	83	63	32	22
12	1/2"	93	73	39	26
15	1/2"	93	73	39	26
20	3/4"	101	81	48	31
25	1"	107	87	54	38
32	1 1/2"	111	91	67	48
40	1 1/2"	117	97	73	54
50	2"	131	111	90	66

* other thread connection, i.e. metric, NPT, cylindrical available on request
** for complete thread specifications please check our Standard's Page of Catalog Apppendix

Coupling AE505

Pipe / Weld-end coupling with cone seal assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN [mm]	d [mm]	l [mm]	l1 [mm]	SW [mm]
10	13.5	62	42	27
12	17.2	65	45	27
15	21.3	74	54	32
20	26.9	80	60	41
25	33.7	87	67	50
32	42.4	95	75	60
40	48.3	101	81	70
50	60.3	114	94	85
65	76.1	122	102	100
80	88.9	132	107	120

* other pipe sizes and lengths available on request

Coupling AE506

Pipe / Weld-end coupling with flat seal assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN [mm]	d [mm]	l [mm]	l1 [mm]	SW [mm]
10	13.5	62	42	27
12	17.2	65	45	27
15	21.3	74	54	32
20	26.9	80	60	41
25	33.7	87	67	50
32	42.4	95	75	60
40	48.3	101	81	70
50	60.3	114	94	85
65	76.1	122	102	100
80	88.9	132	107	120

* other pipe sizes and lengths available on request

Coupling AE507

Swivel nut with internal thread and spherical seal assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN	DIN2999		ISO228		l	l1
[mm]	d	SW	d	SW	[mm]	[mm]
6	1/4"	17	14x1.5	17	44	24
8	3/8"	20	16x1.5	19	44	24
10	1/2"	24	18x1.5	22	45	25
12	5/8"	27	22x1.5	27	48	28
15	3/4"	32	26x1.5	32	49	29
20	1"	41	30x2	36	50	30
25	1 1/4"	50	36x2	41	55	35
32	1 1/2"	55	45x2	50	55	35
40	2"	65	52x2	60	55	35
50	2 1/2"	75	-	-	65	45

* other thread connection, i.e. metric, NPT, cylindrical available on request
** for complete thread specifications please check our Standard's Page of Catalog Apppendix

Coupling AE508

Swivel nut with internal thread and flat seal assembly for stainless steel corrugated hose type SE110.

Available in carbon steel and stainless steel. Sizes acc. to standards or mechanized to custom specifications.

DN	DIN2999		ISO228		l	l1
[mm]	d	SW	d	SW	[mm]	[mm]
6	1/4"	17	14x1.5	17	44	24
8	3/8"	20	16x1.5	19	44	24
10	1/2"	24	18x1.5	22	45	25
12	5/8"	27	22x1.5	27	48	28
15	3/4"	32	26x1.5	32	49	29
20	1"	41	30x2	36	50	30
25	1 1/4"	50	36x2	41	55	35
32	1 1/2"	55	45x2	50	55	35
40	2"	65	52x2	60	55	35
50	2 1/2"	75	-	-	65	45

* other thread connection, i.e. metric, NPT, cylindrical available on request
** for complete thread specifications please check our Standard's Page of Catalog Apppendix

DN [mm]	l [mm]	h1 [mm]
10	29	9
15	29	9
20	32	12
25	40	20
32	40	20
40	40	20
50	40	20
65	40	20
80	50	25
100	50	25
125	60	30
150	70	30

DN [mm]	l [mm]	h1 [mm]	h3 [mm]
10	55	35	12
15	55	38	12
20	60	40	14
25	60	40	14
32	60	42	14
40	60	45	14
50	65	45	16
65	65	45	16
80	75	50	16
100	75	52	18
125	80	55	18
150	90	55	20

DN [mm]	l [mm]	h1 [mm]	h3 [mm]
10	75	55	12
15	75	55	12
20	80	60	14
25	85	65	14
32	90	70	14
40	95	75	14
50	95	80	16
65	100	85	16
80	110	90	16
100	115	90	16
125	120	95	18
150	135	55	20

DN [mm]	l [mm]	h1 [mm]
10	55	35
15	55	38
20	58	40
25	58	40
32	60	42
40	62	45
50	65	45
65	65	45
80	75	50
100	77	52
125	85	55
150	95	55

DN [mm]	d [mm]	s [mm]	l [mm]	l1 [mm]
6	8	1	48	28
8	10	1	50	30
10	12	1.5	50	30
12	15	1.5	52	32
15	18	1.5	52	32
20	22	1.5	56	36
25	28	1.5	60	40
32	35	2	65	45
40	42	2	65	45

DN [mm]	l [mm]	h1 [mm]
10	29	9
15	29	9
20	32	12
25	40	20
32	40	20
40	40	20
50	40	20
65	40	20
80	50	25
100	50	25
125	60	30
150	70	30

DN [mm]	l [mm]	h1 [mm]	h3 [mm]
10	55	35	12
15	55	38	12
20	60	40	14
25	60	40	14
32	60	42	14
40	60	45	14
50	65	45	16
65	65	45	16
80	75	50	16
100	75	52	18
125	80	55	18
150	90	55	20

DN [mm]	l [mm]	h1 [mm]	h3 [mm]
10	75	55	12
15	75	55	12
20	80	60	14
25	85	65	14
32	90	70	14
40	95	75	14
50	95	80	16
65	100	85	16
80	110	90	16
100	115	90	16
125	120	95	18
150	135	55	20

DN [mm]	l [mm]	h1 [mm]
10	55	35
15	55	38
20	58	40
25	58	40
32	60	42
40	62	45
50	65	45
65	65	45
80	75	50
100	77	52
125	85	55
150	95	55

DN [mm]	d [mm]	s [mm]	l [mm]	l1 [mm]
6	8	1	48	28
8	10	1	50	30
10	12	1.5	50	30
12	15	1.5	52	32
15	18	1.5	52	32
20	22	1.5	56	36
25	28	1.5	60	40
32	35	2	65	45
40	42	2	65	45

Type PTFE-LinerStainless Steel Corrugated Hose

Properties

Documents

Technical Specifications

Couplings Types

Flanged Couplings

Coupling AE201

Coupling AE202

Coupling AE203

Coupling AE204

Pipe / Welding-ends Couplings

Coupling AE301

Coupling AE302

Cone Seal Threaded Couplings

Coupling AE401

Coupling AE403

Coupling AE404

Hex Nipple / Socket

Coupling AE405

Coupling AE406

Coupling AE408

Holander Assembly

Coupling AE501

Coupling AE502

Coupling AE503

Coupling AE504

Coupling AE505

Coupling AE506

Coupling AE507

Coupling AE508

We're here to help. What can we do for you?

Type PTFE-Liner
Stainless Steel Corrugated Hose

DN [mm]	l [mm]	h1 [mm]
10	29	9
15	29	9
20	32	12
25	40	20
32	40	20
40	40	20
50	40	20
65	40	20
80	50	25
100	50	25
125	60	30
150	70	30

DN [mm]	l [mm]	h1 [mm]	h3 [mm]
10	55	35	12
15	55	38	12
20	60	40	14
25	60	40	14
32	60	42	14
40	60	45	14
50	65	45	16
65	65	45	16
80	75	50	16
100	75	52	18
125	80	55	18
150	90	55	20

DN [mm]	l [mm]	h1 [mm]	h3 [mm]
10	75	55	12
15	75	55	12
20	80	60	14
25	85	65	14
32	90	70	14
40	95	75	14
50	95	80	16
65	100	85	16
80	110	90	16
100	115	90	16
125	120	95	18
150	135	55	20

DN [mm]	l [mm]	h1 [mm]
10	55	35
15	55	38
20	58	40
25	58	40
32	60	42
40	62	45
50	65	45
65	65	45
80	75	50
100	77	52
125	85	55
150	95	55

DN [mm]	d [mm]	s [mm]	l [mm]	l1 [mm]
6	8	1	48	28
8	10	1	50	30
10	12	1.5	50	30
12	15	1.5	52	32
15	18	1.5	52	32
20	22	1.5	56	36
25	28	1.5	60	40
32	35	2	65	45
40	42	2	65	45
